Load Testing Services

Loadbanks Direct Outdoor Stationary Loadbank

lbd
Model # LS1000-240-380-480-5MT

Overview:

Load Banks Direct is pleased to be your complete solutions provider for superior quality load bank products at competitive prices. Formerly a division of Powerohm Resistors (America’s largest manufacturer of power resistor products), LBD is positioned to become the leading load bank supplier in the USA. Leveraging 20 years of manufacturing excellence, LBD’s products have all of the features and refinements you would expect from a leading provider.

Our Load Banks are typically used for high power load testing of emergency power systems including generators, uninterruptible power supplies, turbines, battery systems and regenerative power absorption of large motors and other load applications. Our load bank products include power capacities ranging from 50 kilowatts to 2500 kilowatts with standard load step resolution of 25 kW – twice as good as the industry standard 50 kW.

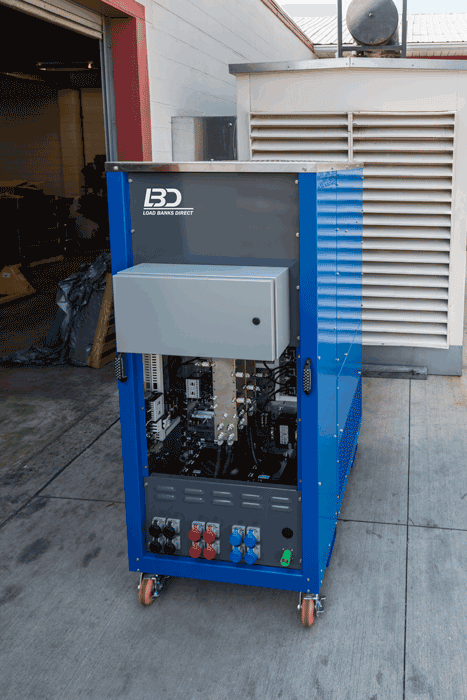

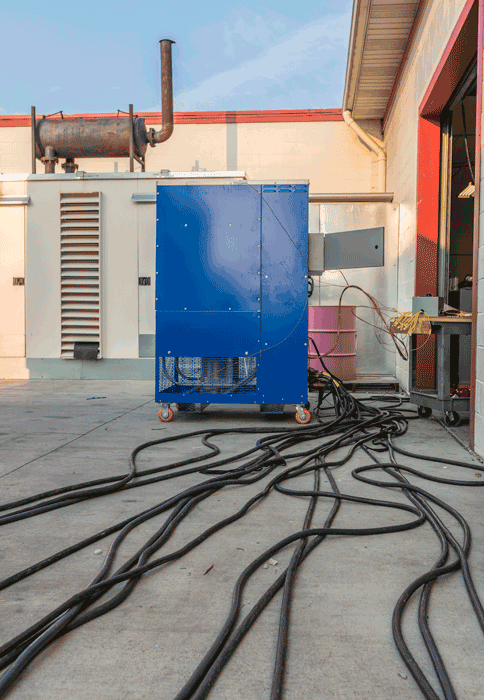

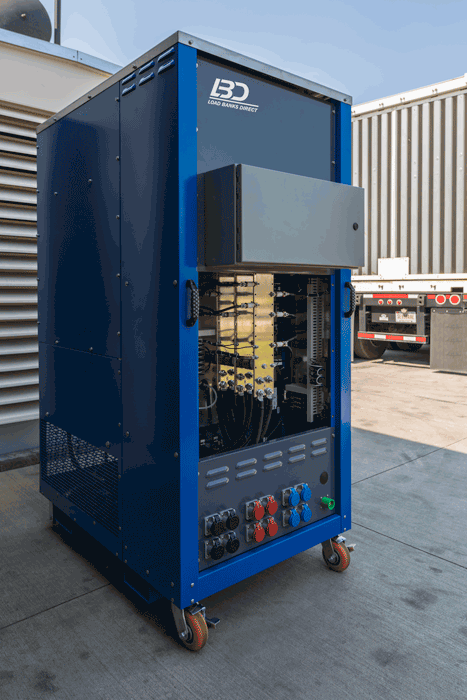

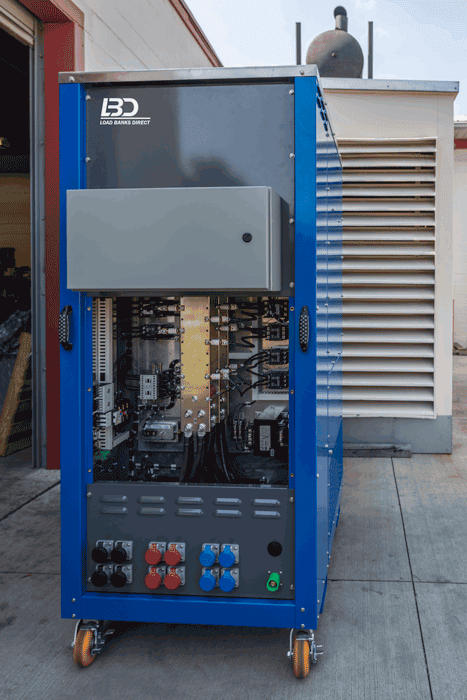

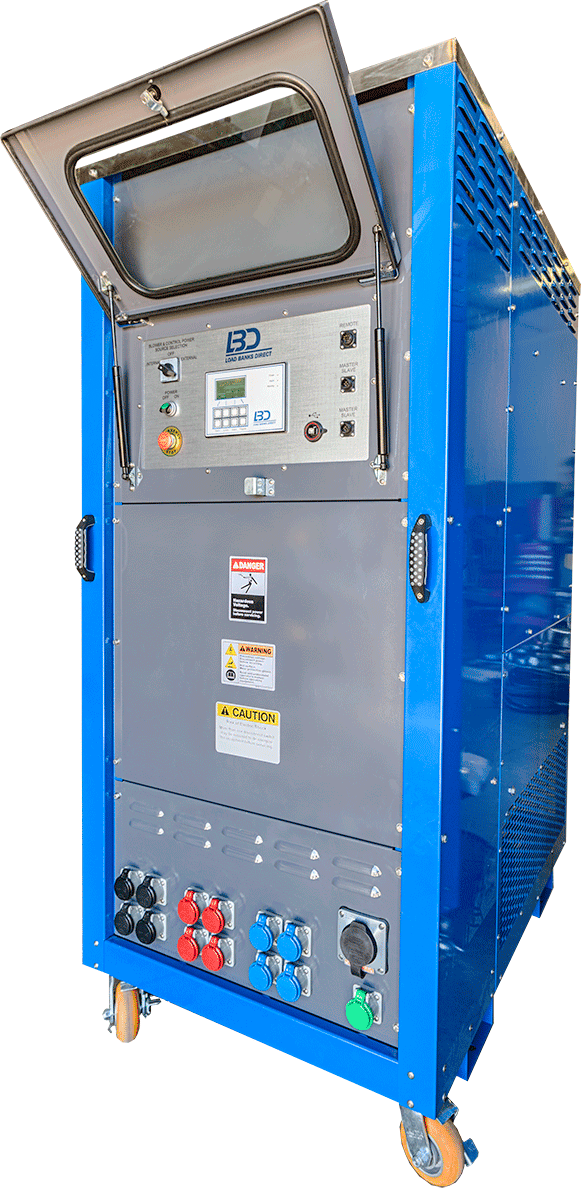

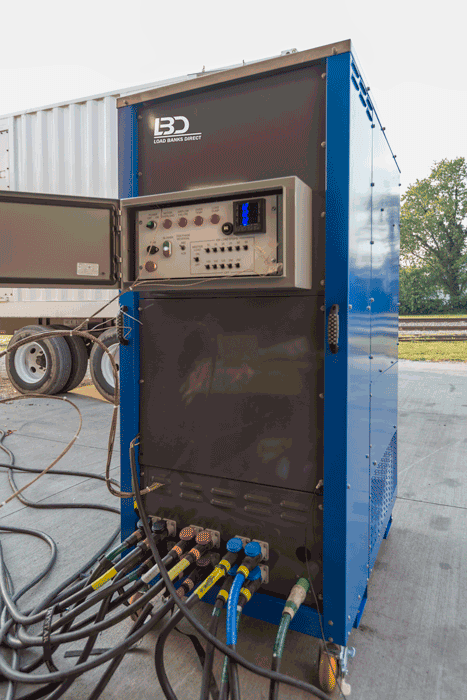

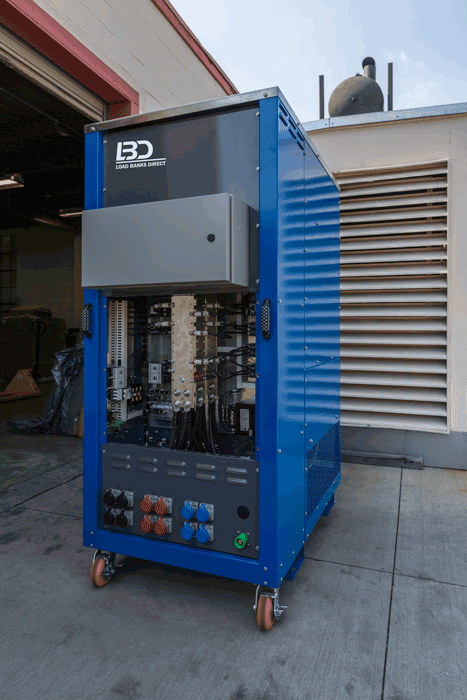

The LS1000 Stationary Load Bank offers the most robust, high-capacity, outdoor design in the industry.  LBD is setting the standard with intelligent operator controls, safety indication layouts, adjustable load step resolution, and ease of installation.  The LS1000 is the perfect solution for regularly scheduled testing and commissioning of mission-critical standby emergency power systems.

  • http://www.tats.com.sa/wp-content/uploads/2015/12/LBD1.png
  • http://www.tats.com.sa/wp-content/uploads/2015/12/LBD2.png
  • http://www.tats.com.sa/wp-content/uploads/2015/12/LBD3.png
  • http://www.tats.com.sa/wp-content/uploads/2015/12/LBD4.png
  • http://www.tats.com.sa/wp-content/uploads/2015/12/LBD5.png
  • http://www.tats.com.sa/wp-content/uploads/2015/12/LBD6.png
  • http://www.tats.com.sa/wp-content/uploads/2015/12/LBD7.png

LS1000 Model Specification Sheet:

Available Ratings
Max kW 1000kW, Resistive Type
Rated Voltage (L-L) 240/380/480VAC, 3Ph, 60Hz
Step Resolution 5kW
Controls Integral



We also offer load testing services for all major diesel generator brands up to 13 MW Capacity at 4.16 kV, 13.8kV, 220V, 380V and 480V

Should you have any queries regarding sales, after sales support or rental of AC/DC load bank products then please contact us
